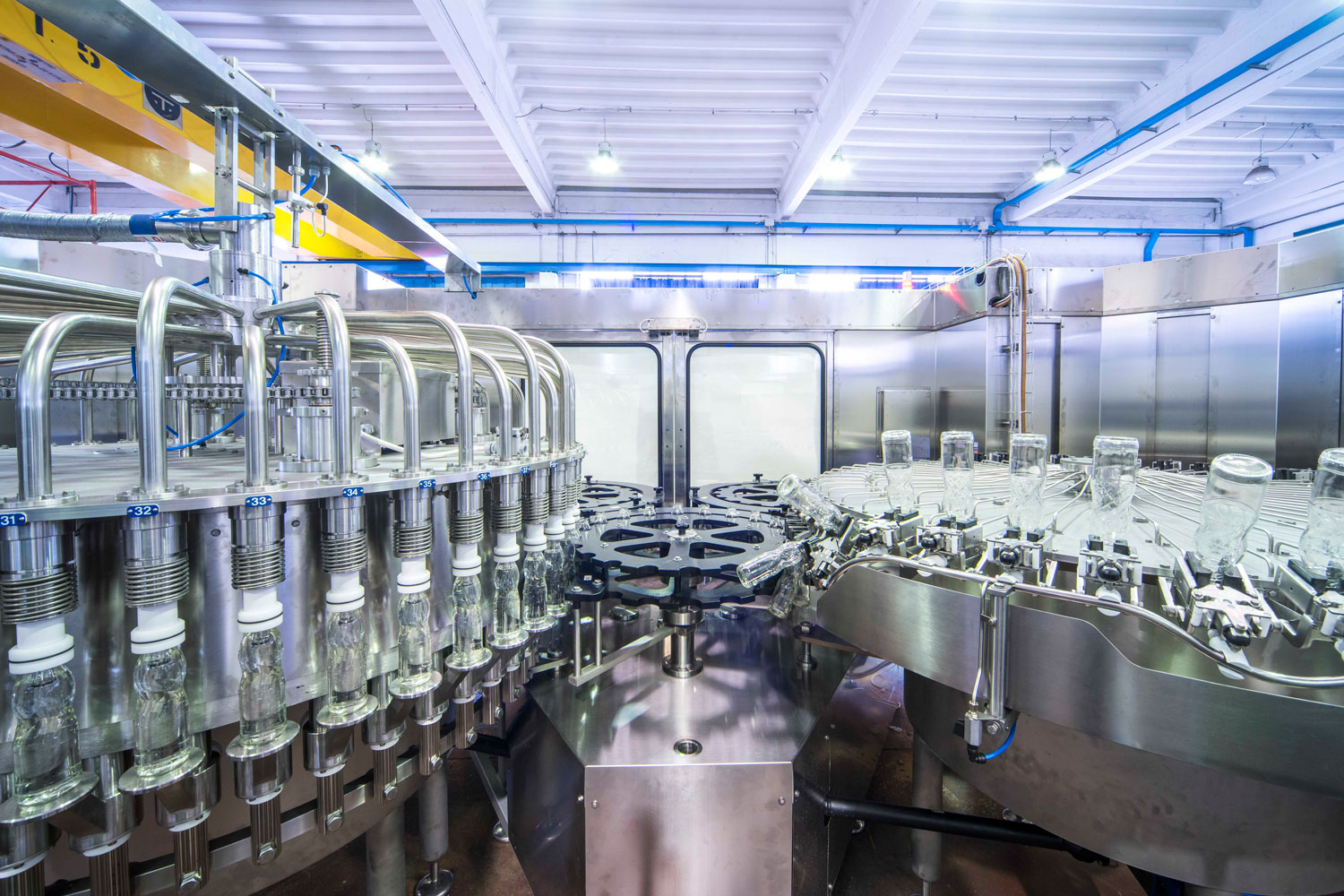

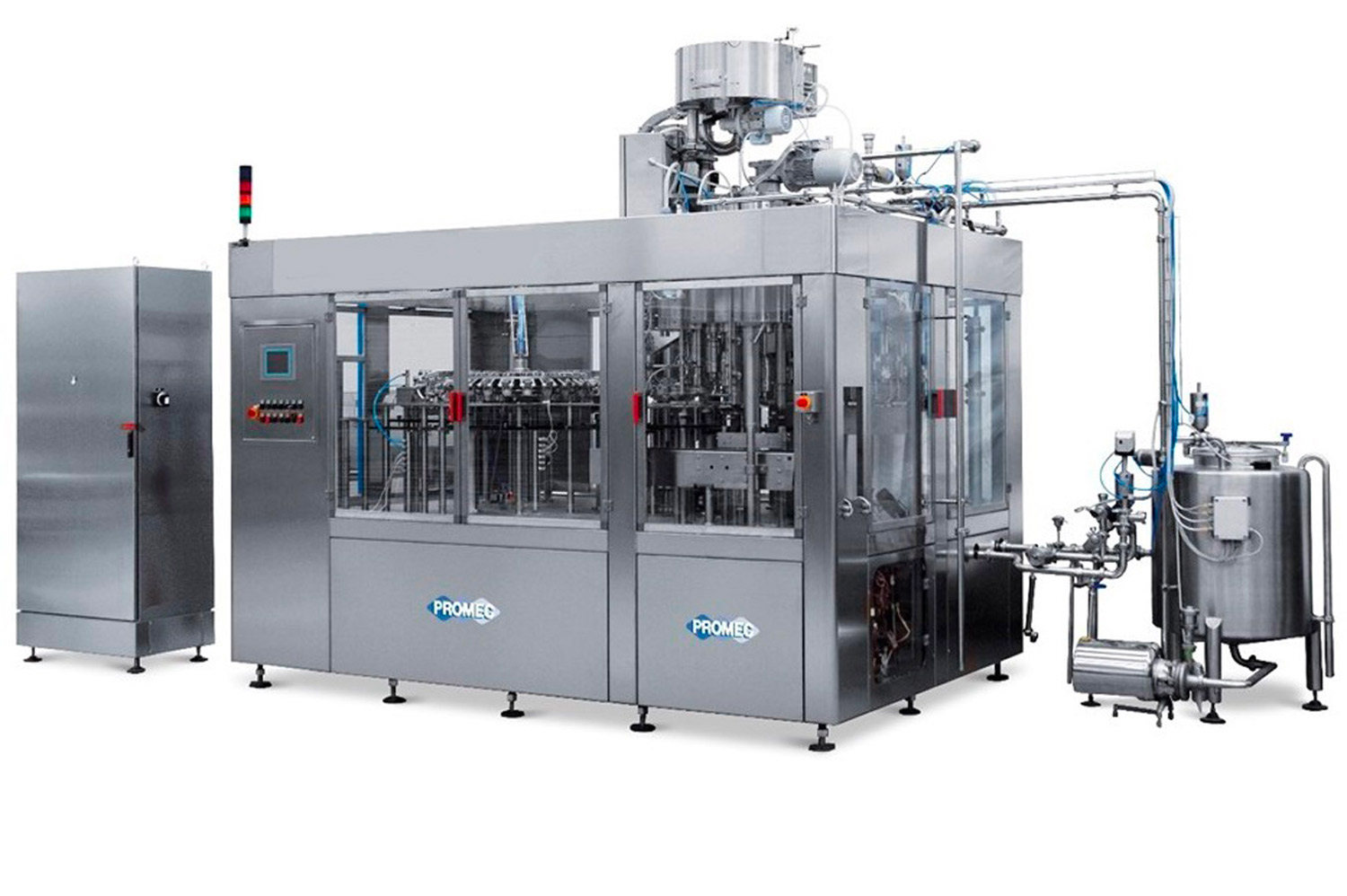

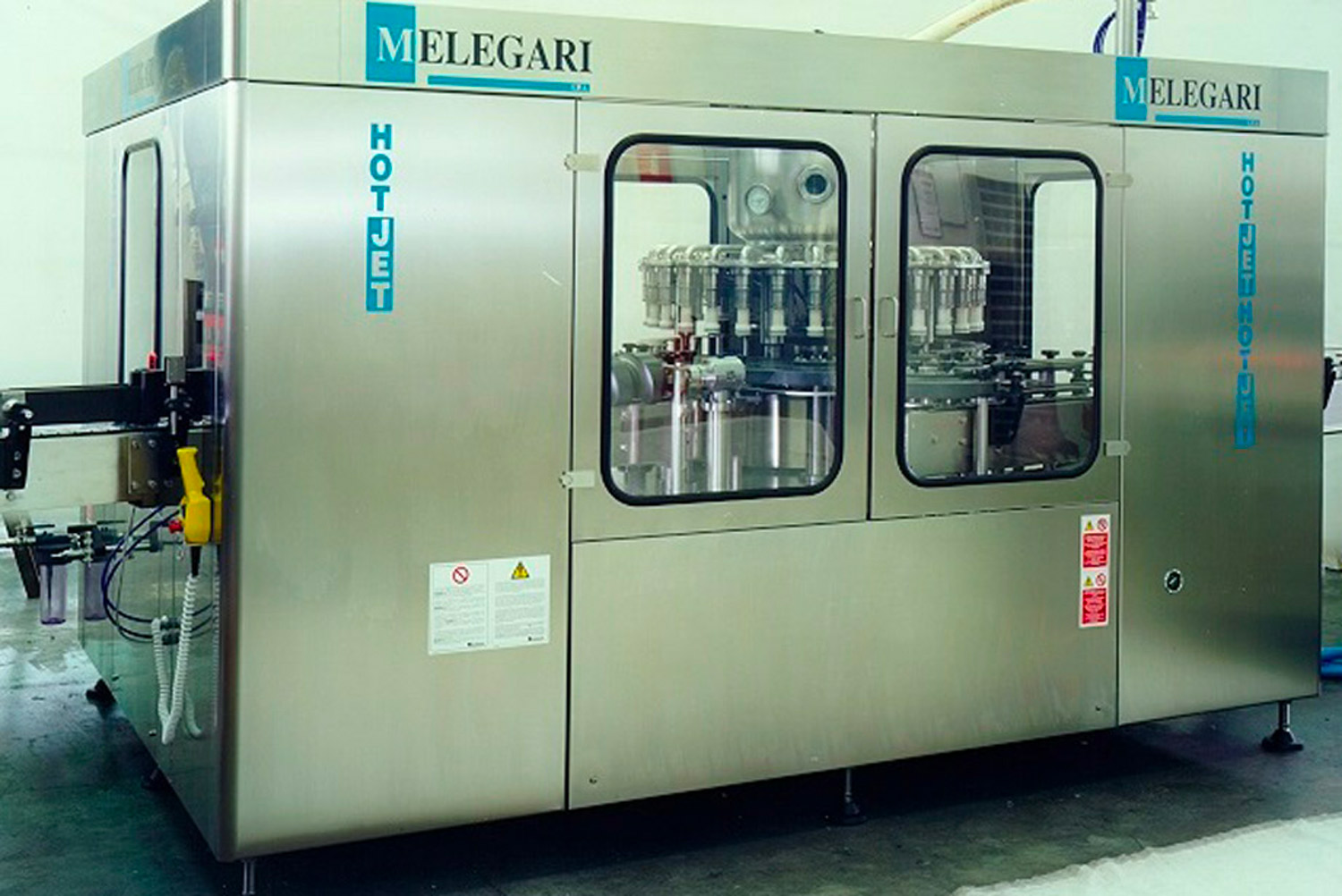

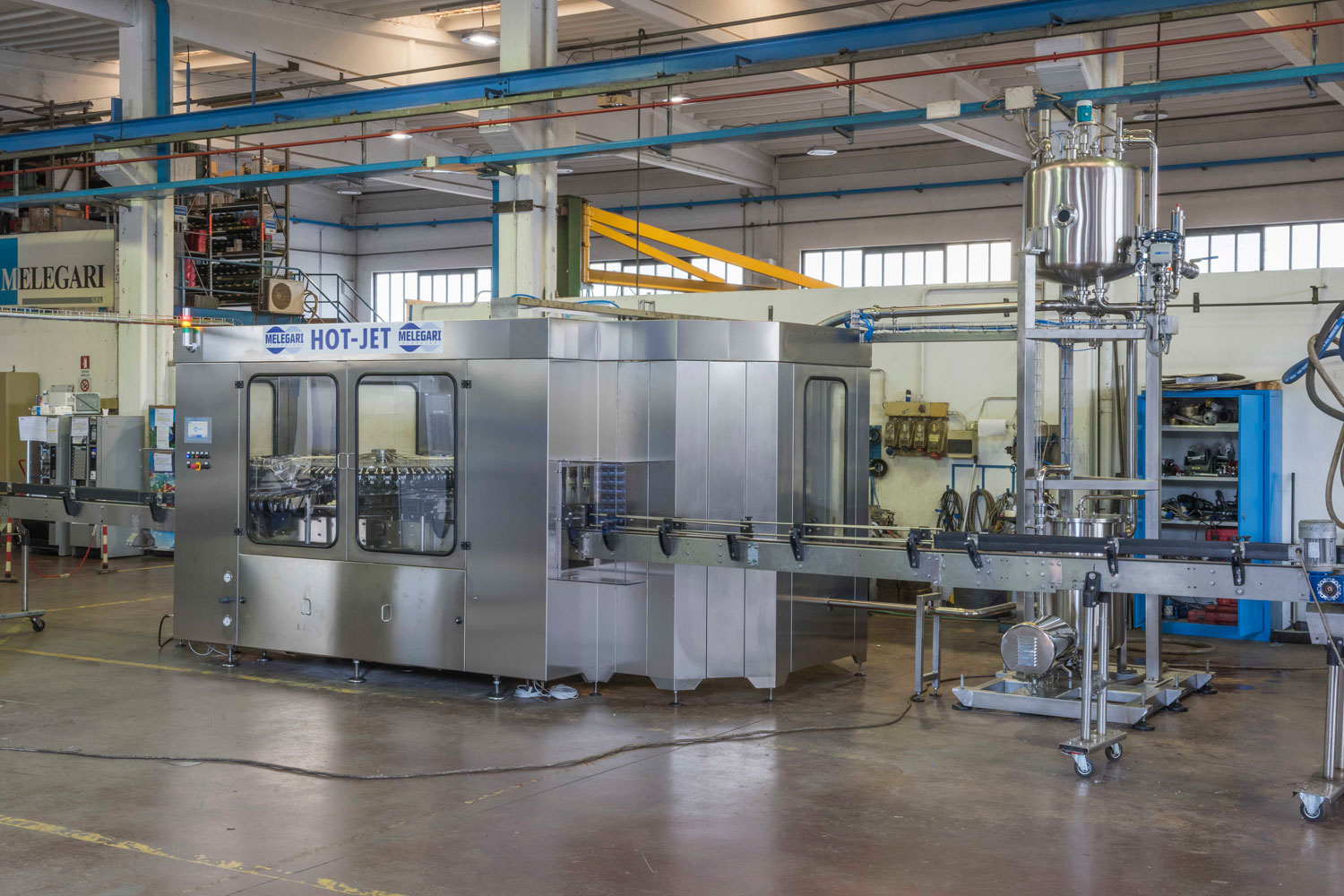

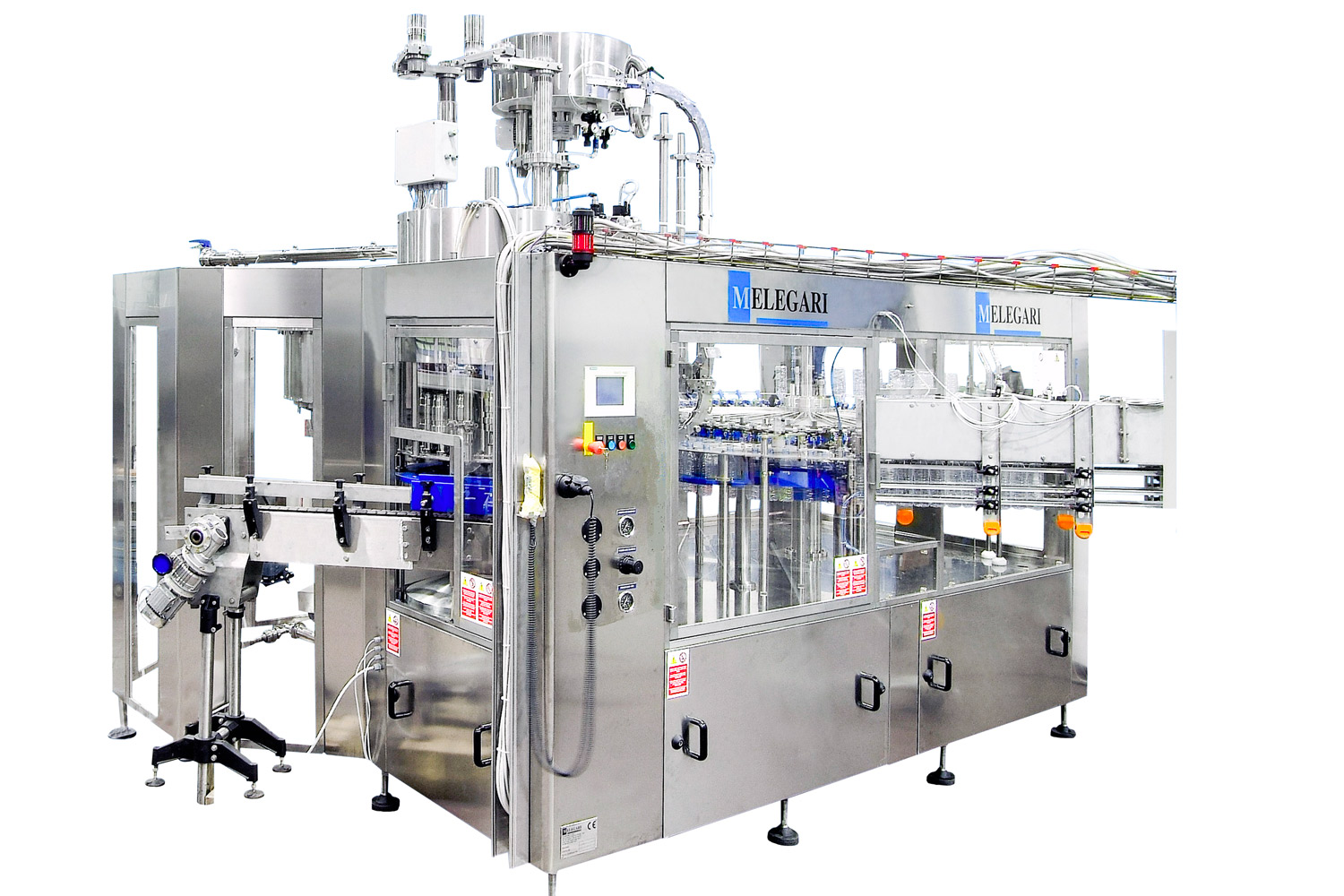

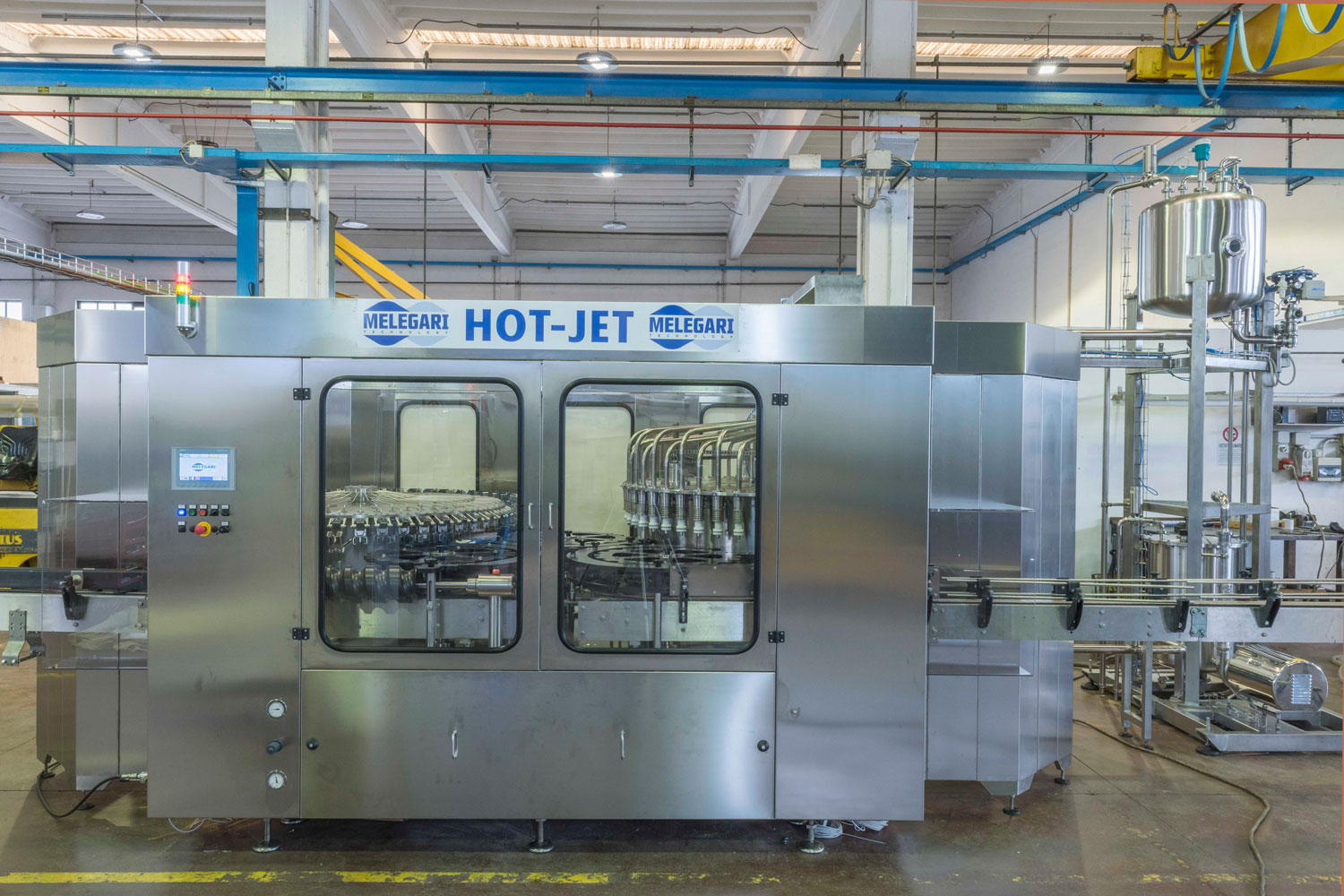

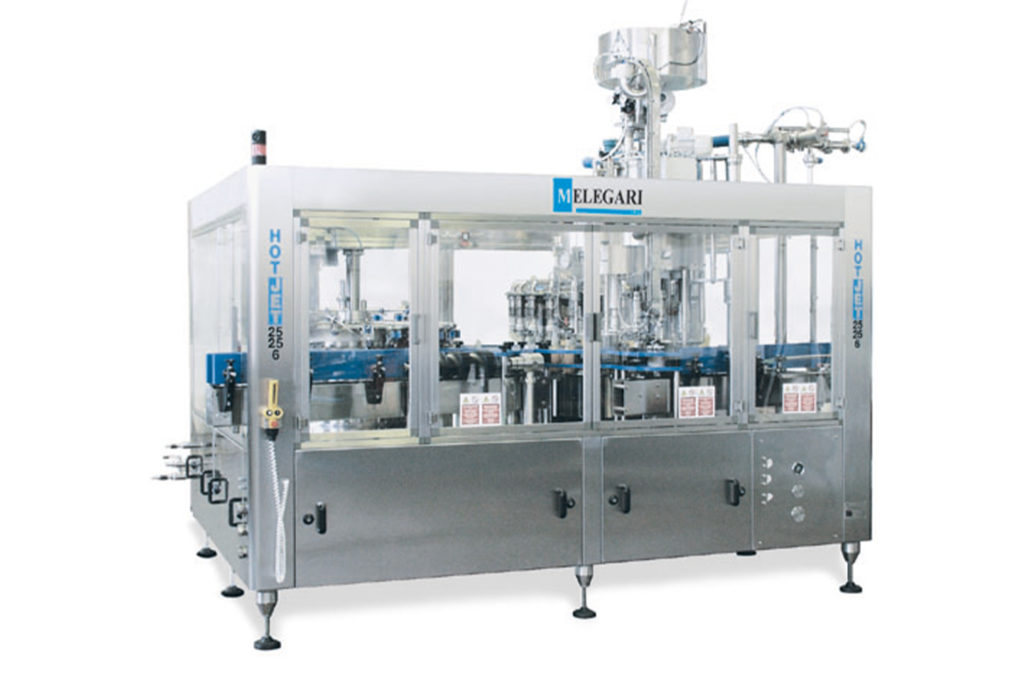

Hotjet is our filler for juices, tea and isotonic drinks. Due to its characteristics, it is particularly suitable for hot filling (up to 90°C) of low and medium viscosity products in glass bottles and in PET resistant to high temperatures. It is used for medium and long term storage at room temperature.

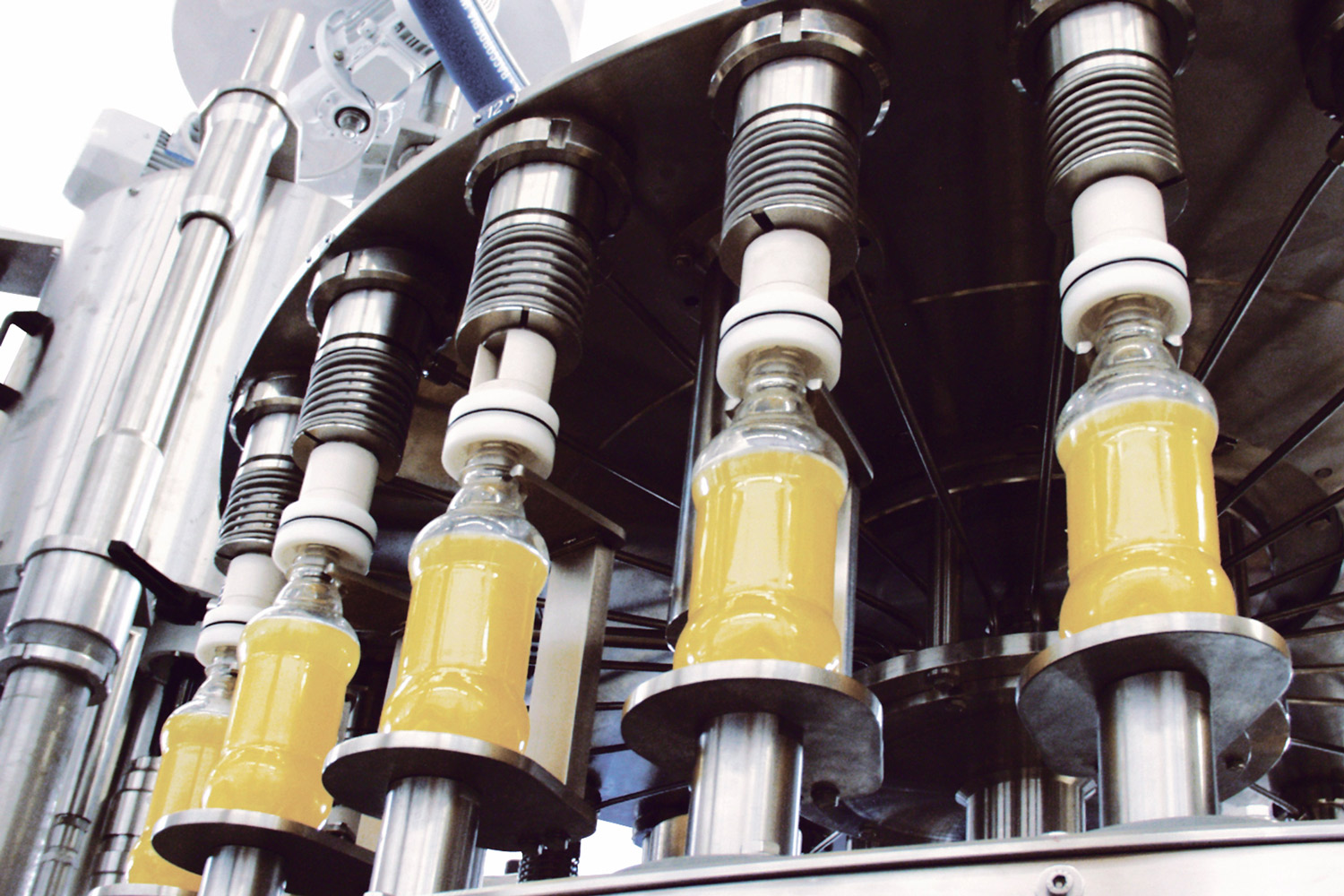

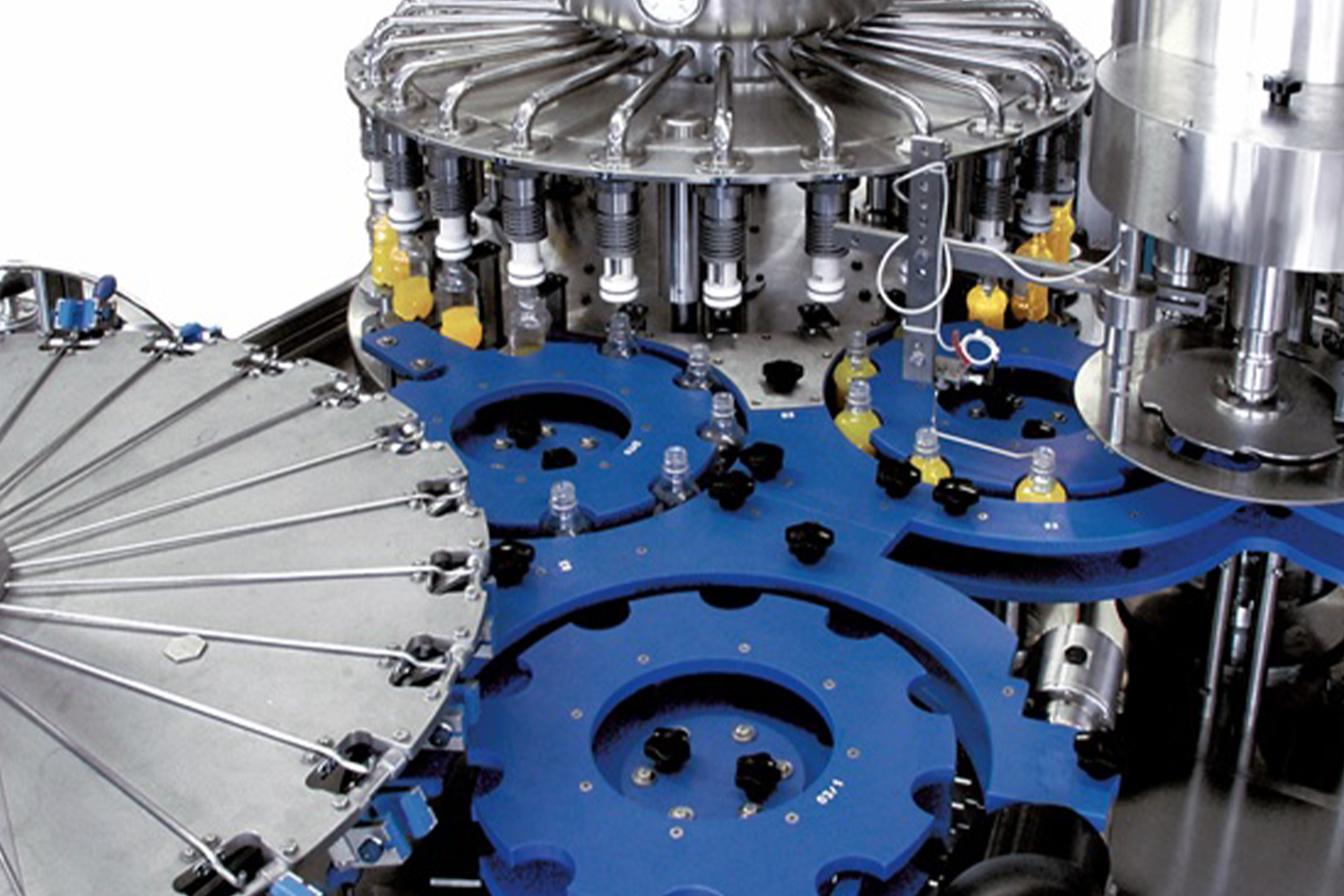

The machine is easily adjustable in height to handle different formats; In the case of PET containers, the bottle transfer is made by neck handling system
ADVANTAGES
- Constant control of the filling temperature
- Accuracy in filling levels
- Product recirculation (also in the bottle)
- Ease of use and low maintenance requirements
- Possibility of “brim full” filling
FRUIT JUICE, TEA, SPORTS DRINKS
- Production 4.000 ÷ 60.000 bph
- n ° valves : 20 ÷ 100
- PET-Glass treatable bottles
- Treatable bottles (h) 140 ÷ 340
- Treatable bottles (Ø) 48 ÷ 115
- Parts in contact with the product in SS 304
- Touch Screen operator panel
- Dummy bottles for sanitization
- Base in SS 304
- SS 304 and Drainable base
- Automatic centralized lubrication
- Parts in contact with the product in SS 316L
- Teleassistance

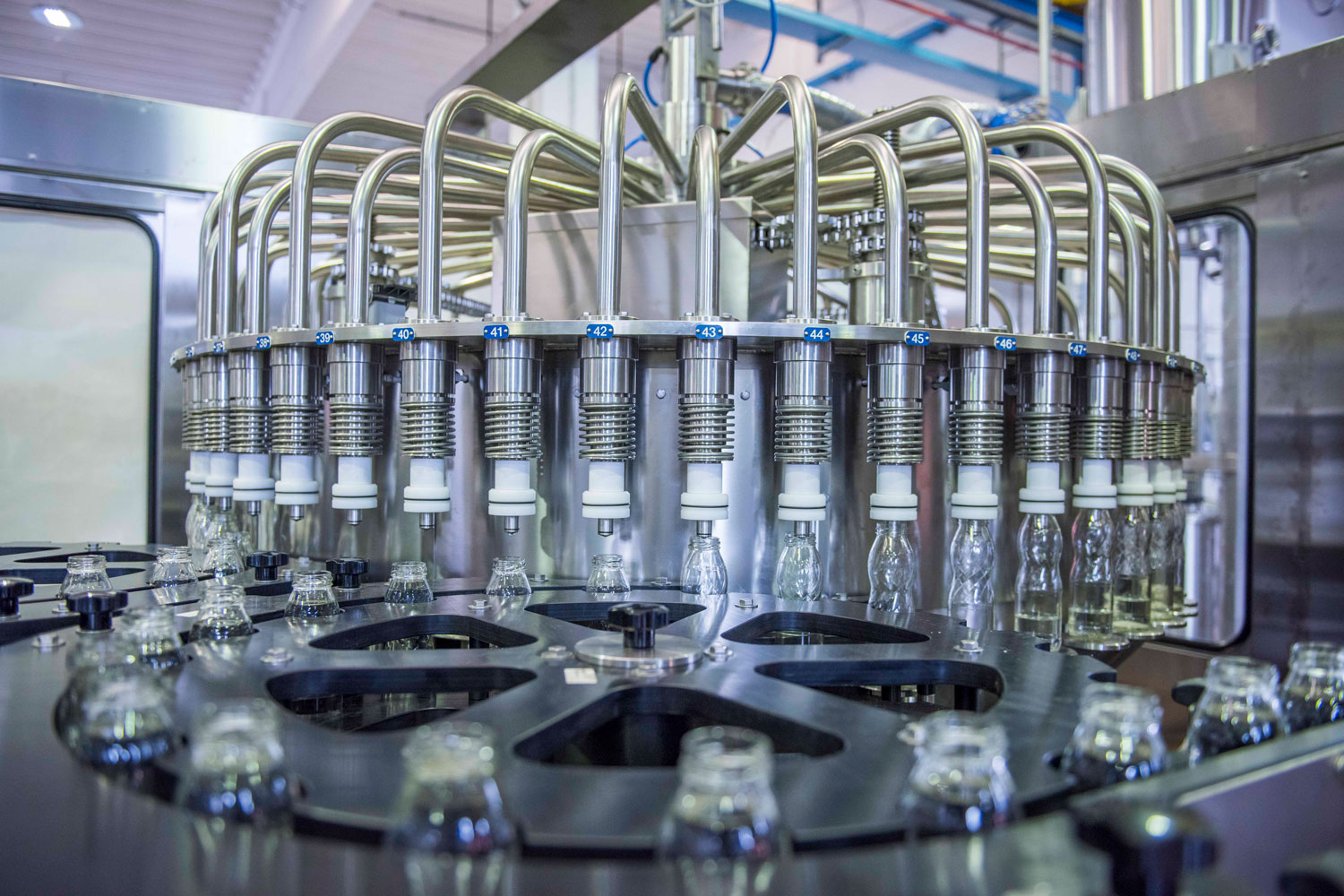

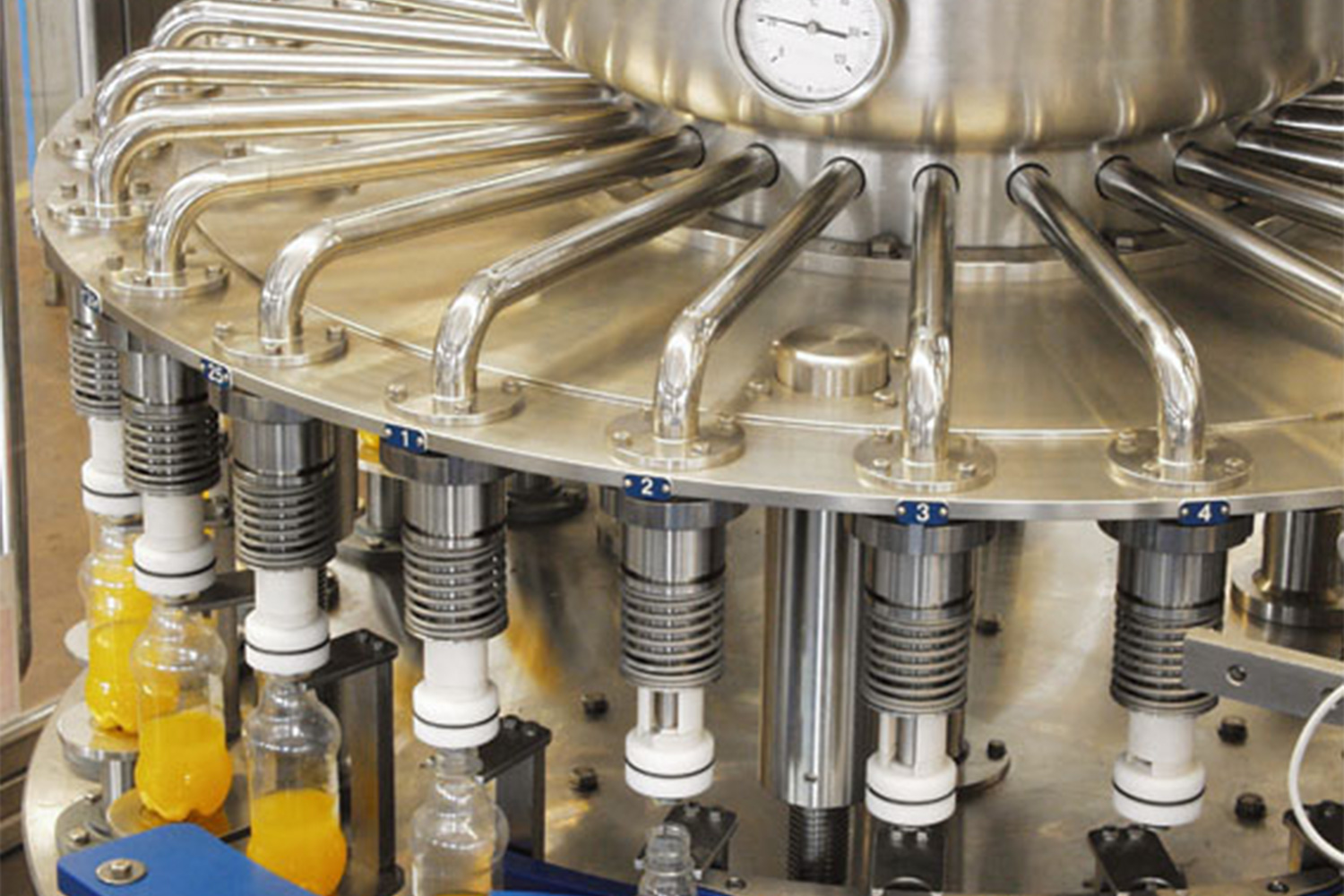

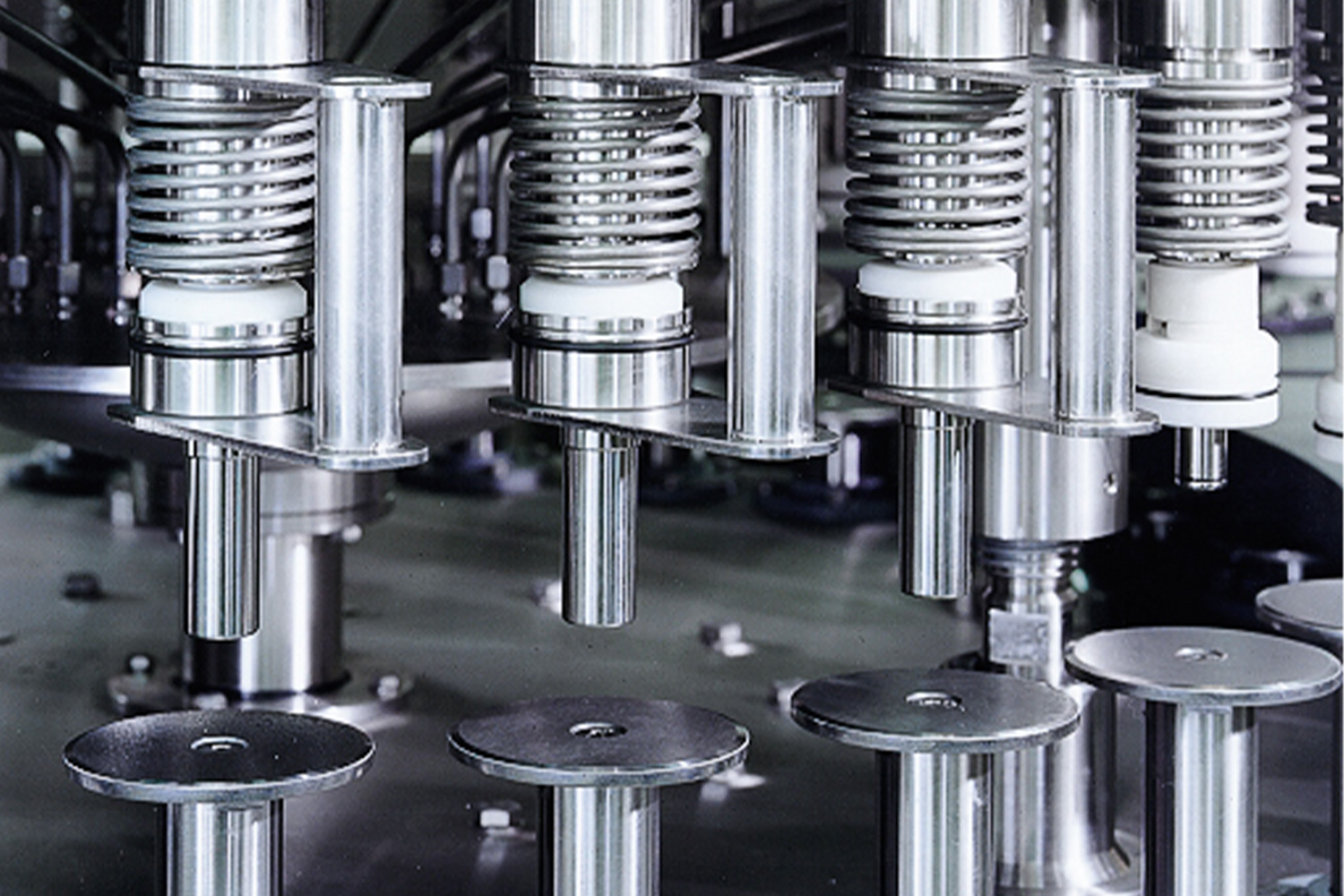

The filling takes place by gravity, and can also be assisted by slight depression. Product delivery takes place only if the bottle is present; after filling, the product present in the vent tube ends up in the recycling system and return to the recycled product tank.
It is always active and is used to keep the filling temperature and the entire circuit constant. The HOTJET valve also allows the recirculation of the product in the bottle.
The feeding and recirculation tanks, valves and other parts in contact with the product are mirror polished and slightly inclined to avoid dirt residues and facilitate washing and drainage. These parts can be washed and sanitized with liquid, cold or hot solutions.
